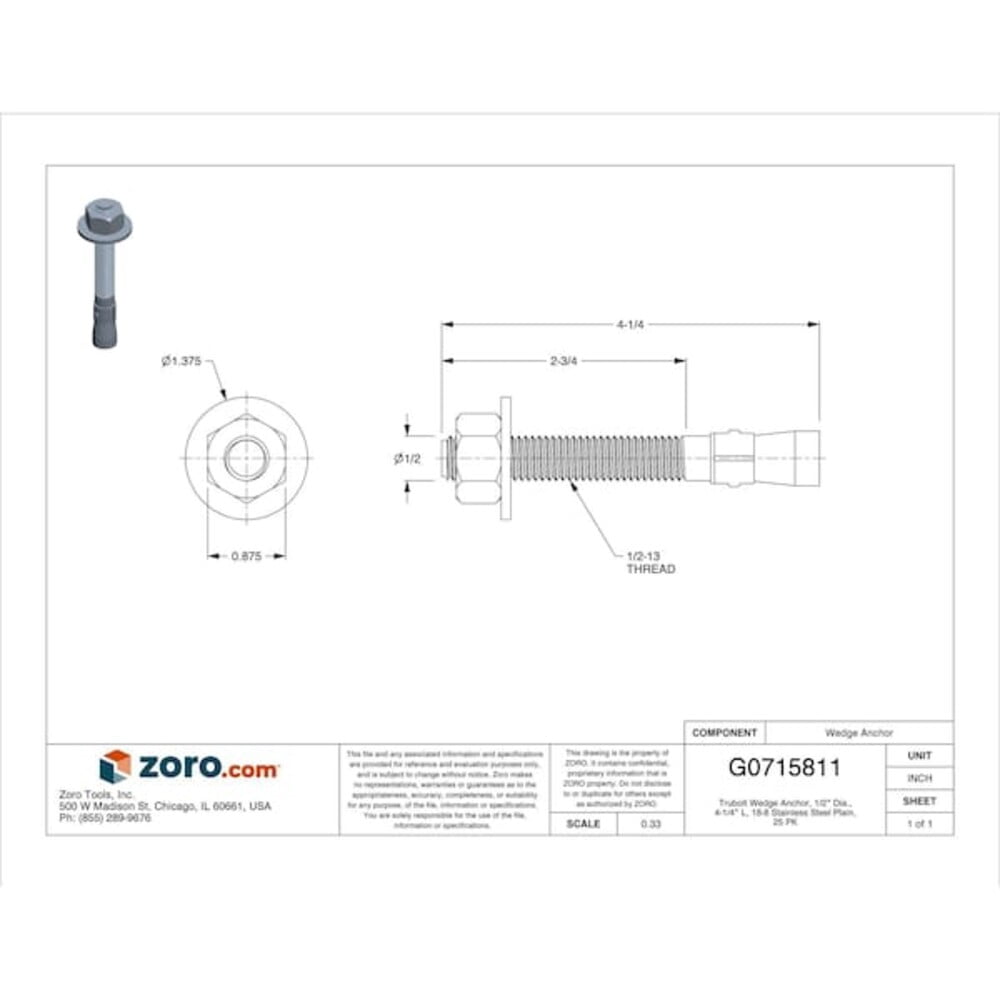

Trubolt Wedge Anchor, 1/2" Dia., 4-1/4" L, 18-8 Stainless Steel Plain, 25 PK WW-1242
Product details
| Management number | 238311592 | Release Date | 2026/07/11 | List Price | US$61.54 | Model Number | 238311592 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Thread Size 1/2 In.-13, Overall Length 4 1/4 in, Thread Length 2 3/4 in, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Compatible Material Concrete, Drill Bit Size 1/2 in, Minimum Installation Depth 1 7/8 in, Minimum Material Thickness 5 in, Ultimate Shear Strength (4,000 psi Concrete) 4,760 lb, Ultimate Tension Strength (4,000 psi Concrete) 5,100 lb, Wedge Anchor Type Wedge Anchor, Seismic Approved No This item is banned in the following states: PR
- Anchor Diameter:1/2"
- Compatible Material:Concrete
- Drill Bit Size:1/2 in
- Embedment In Concrete:2 1/4 in
- Finish:Plain
- ICC Approved for Cracked Concrete:No
- ICC Approved for Un-Cracked Concrete:Yes
- Includes:Nut, Washer
- Industry Standards:A-A-1923A Type 4
- Item:Wedge Anchor
- Manufacturer Location:Made in USA
- Material Grade/Class:18-8
- Material Grade:304
- Material Quality Standards:ACI 355.2
- Material:18-8 Stainless Steel
- Maximum Installation Torque:55 ft-lb
- Maximum Material Thickness:1-1/2"
- Minimum Installation Depth:2-1/4"
- Minimum Installation Torque:55 ft-lb
- Minimum Material Thickness:5 in
- Overall Length:4-1/4"
- Seismic Approved:No
- Series:Trubolt/Trubolt+
- Sub-Brand:Trubolt
- System of Measurement:Inch
- Thread Length:2 3/4 in
- Thread Size:1/2"-13
- Thread Style:Fully Threaded
- Thread:Fully Threaded
- Ultimate Pullout (Lb.):5,100 lb
- Ultimate Shear Strength (4,000 psi Concrete):4,760 lb
- Ultimate Tension Strength (4,000 psi Concrete):5,100 lb
- Wedge Anchor Type:Wedge Anchor
| Hardware anchor type | Concrete |
|---|---|
| Rec. use | Concrete |
| Material | Stainless Steel |
| Finish | Plain |
| Brand | Red Head |
| Color | Multi |
| Count | 1 |
| Dimensions | 8.40 x 4.90 x 2.60 in |
| Accessories | Nut, Washer |
| Model | WW-1242 |
| Has written warranty | No |
